Pipe Repair products offer a fast, safe way to seal splits, holes, and corroded sections instantly – often under full system pressure – avoiding the need for expensive and time-consuming network shutdowns.
When used with a MaxiFit coupling, MaxiCap provides wide-tolerance end termination for multiple pipe materials. Optional drilled and tapped outlets are available on request.
Since MaxiFit is a flexible fitting adequate external restraint has to be provided to prevent end cap from coming off end of pipe..
Caveat 3
There are restrictions on the minimum thickness of the stainless steel, PVC-U and GRP pipes for them to work with Viking Johnson flexible couplings. Consult Viking Johnson for further guidance.
Caveat 4
While Viking Johnson has tested and approved the use of MaxiFit on gas, please verify that the network owner sanctions the use of the fitting for your intended application.
Have a technical question about this product or its application?
Our technical team is ready to answer your questions and guide you to the right solution.
Get Expert Help
MaxiCap
Have a technical question about this product or its application?
Our technical team is ready to answer your questions and guide you to the right solution.
Complete and submit the form shown, and one of our technical specialists will respond to your enquiry within two working days.
"*" indicates required fields

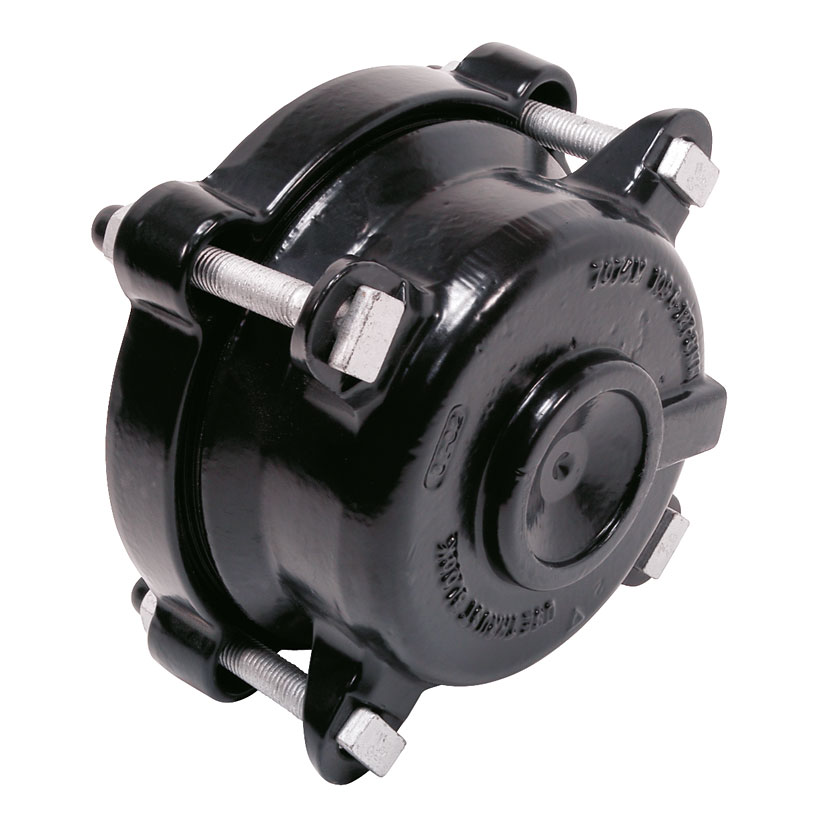

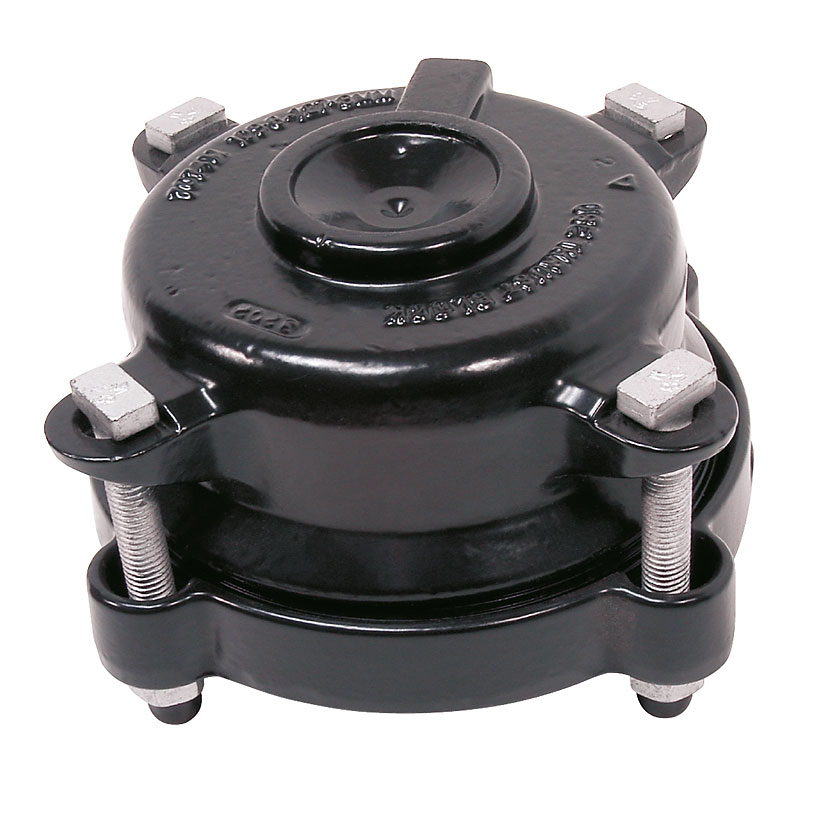

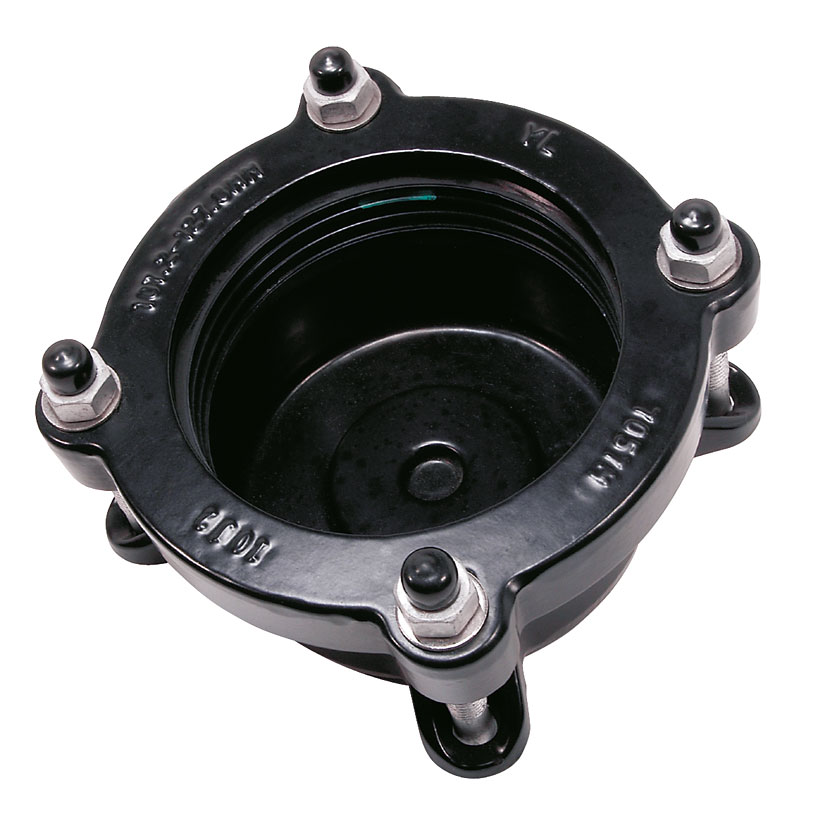

A Versatile Capping Solution for Pipes.
On-site Pressure Testing Capability
MaxiCap enables on-site pressure testing by converting the product into a sealed cap-end configuration, allowing both testing and blanking operations. The assembly requires appropriate external support to prevent movement under pressure, ensuring stability and safe test execution.
Universal Pipe Connections
MaxiCap End caps can seal plain-ended pipes across a wide range of outside diameters and materials, including steel, ductile iron, PVC, cast iron, GRP and asbestos cement.
Pressure Performance
All MaxiCap products are tested to 24 bar (water) and 9 bar (gas), supporting working pressures of 16 bar (water) and 6 bar (gas). This ensures reliable sealing performance across demanding applications.
Versatile Repair
MaxiCap is ideal for sealing or isolating damaged pipe sections.
Quality & Compliance
Manufactured under BS EN ISO 9001, the range meets UK Water Regulations and BS EN 14525, with DN40–DN300 independently tested by BSI.
Why Choose MaxiCap
Built-in angular flexibility – Handles natural pipeline movement from ground settlement. 6° deflection on couplings for reliable alignment.
Rilsan coating – Provides exceptional protection against corrosion, impact, abrasion, and chemicals.
50-year design life – Proven through accelerated ageing at 80°C under pressure for 1000 hours.
Over-torque tested – Can withstand 1.5 × maximum recommended torque without failure.
Design Benefits
Dual Purpose
The MaxiCap end cap fits inside the end ring to the MaxiFit and can be drilled and tapped to form an outlet (up to 2” depending on size).
Optimised Gasket Design
A unique gasket with distinctive circumferential ribs provides a ‘slide easy’ fit for maximum sealing on scored, corroded, or pitted pipe.
Excellent Corrosion & Damage Resistance
Coated in black Rilsan Nylon 11 which is WRAS listed and has excellent resistance to impact, abrasion, weathering and chemicals. It also has good thermal stability and flexibility to accommodate for rough site handling.
Enables Testing On-Site
Converts product to cap end for testing and blanking off (Although the assembly must have suitable external support to prevent movement under pressure).
Water
Waste Water
Gas
