Pipe Repair products offer a fast, safe way to seal splits, holes, and corroded sections instantly – often under full system pressure – avoiding the need for expensive and time-consuming network shutdowns.
Ideally Suited for Water Infrastructure & High Pressure Projects

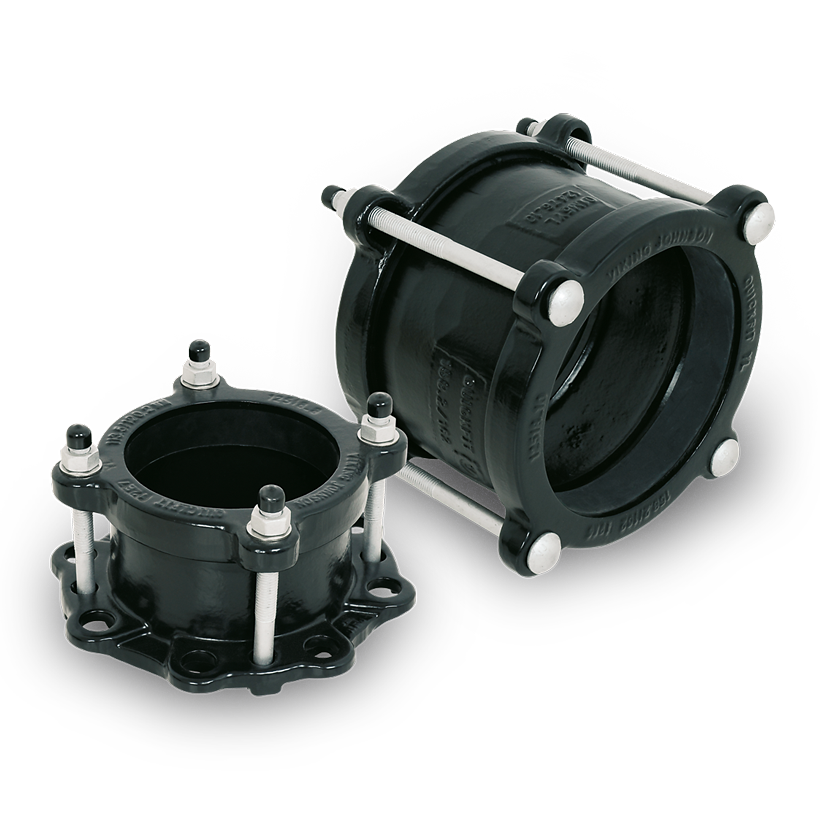

The Viking Johnson QuickFit range is engineered to provide fast, secure, and reliable pipe connections without the need for extensive surface preparation or specialist tools.
Designed with ease of installation at its core, QuickFit products enable operators to achieve high-performance joints in significantly reduced time, making them ideal for planned infrastructure projects.
Sectors
Water
Waste Water
Gas
Industrial
QuickFit has a Wide Range of Suitability
Suitable for a wide variety of pipe materials QuickFit couplings and flange adaptors offer versatility across potable water, wastewater, and industrial applications.
This adaptability ensures utility providers and contractors can standardise their approach while maintaining confidence in the integrity of every connection.
They are also suitable for high pressure applications – DN50 to DN125 are available up to 46 bar, DN150 to DN300 to 29 bar as standard.
This combination of speed and ease of installation is further enhanced by a tolerance that accommodates in one fitting the key pipe materials used in treatment plants, namely steel, coated steel & ductile iron pipe.
By removing the need for precise measurement or extensive pipe preparation, QuickFit not only simplifies installation but also reduces the margin for error on site, enabling consistent, reliable performance even in challenging or time-critical conditions.

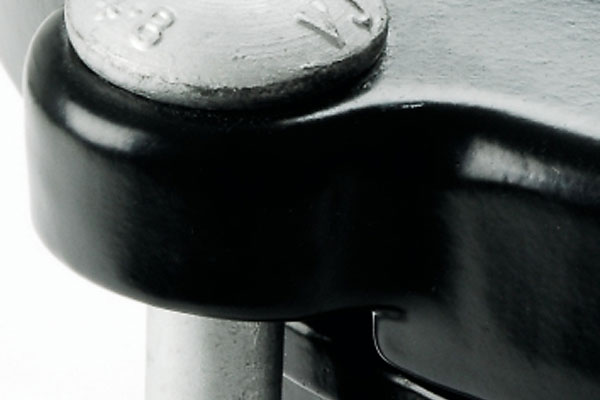

One size of captive, non-rotating bolt across whole range requiring a single spanner to install along with one bolt torque across range.

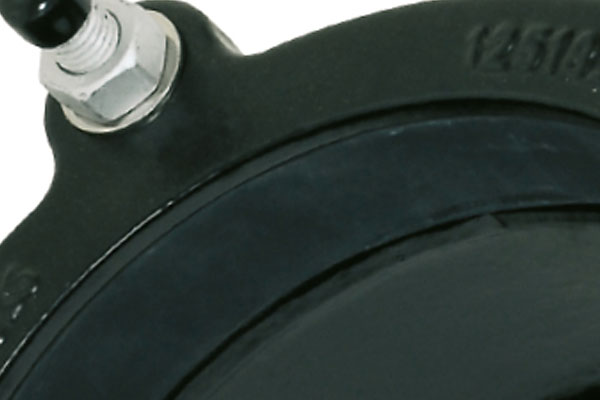

Gasket Options
EPDM water-approved gaskets are supplied as standard, with Nitrile and specialist gasket materials available for alternative applications and environments.

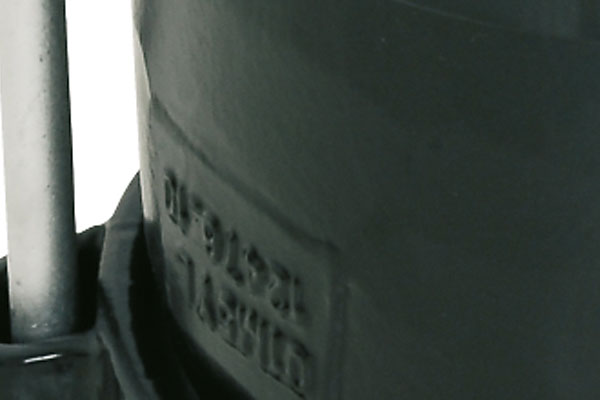

Designed for Durability
All metal components are coated with Rilsan Nylon 11 which provides excellent corrosion resistance, impact protection and long-term durability. Nuts and bolts are Sheraplex coated to prevent galling and allow repeated re-use.

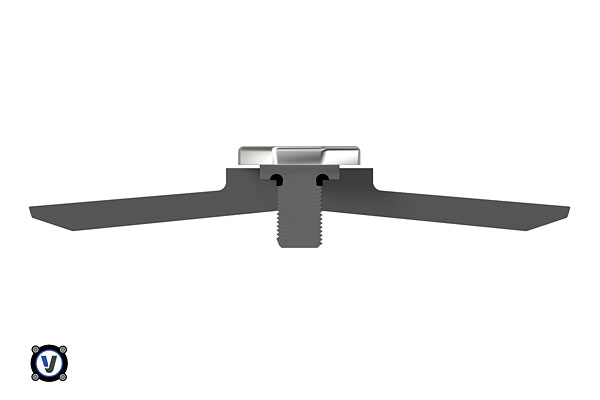

Optional removable Locating Plug
Optional feature is removal locating plug to prevent pipe creep on above ground pipework.
3D Model Loading…
Explore

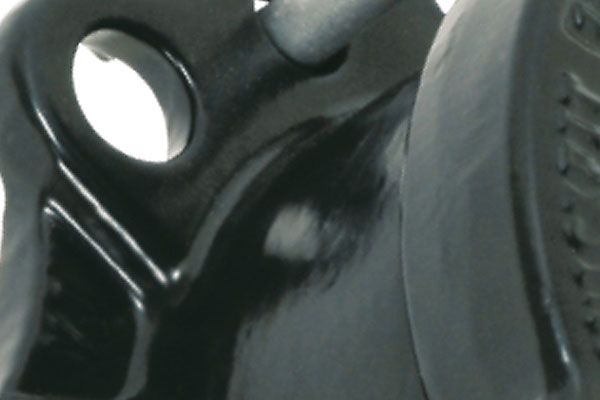

Flexible Flange Drilling
As standard the flange adaptors are multi drilled to accommodate BS EN 1092-2 PN10 & 16. Flange drilling to other standards available to accommodate site requirements

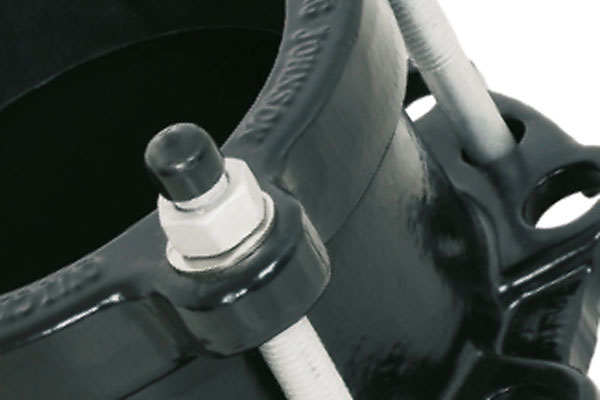

End Load Forces Easily Accommodated
Low profile end ring means no interference with tie rods used to harness the flange adaptor to accommodate end load forces.

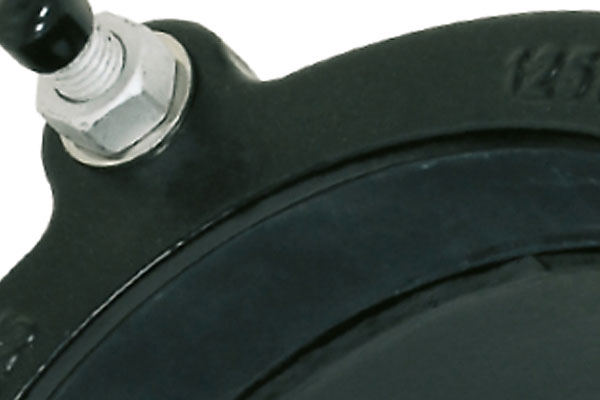

Gasket Options
EPDM water-approved gaskets are supplied as standard, with Nitrile and specialist gasket materials available for alternative applications and environments.

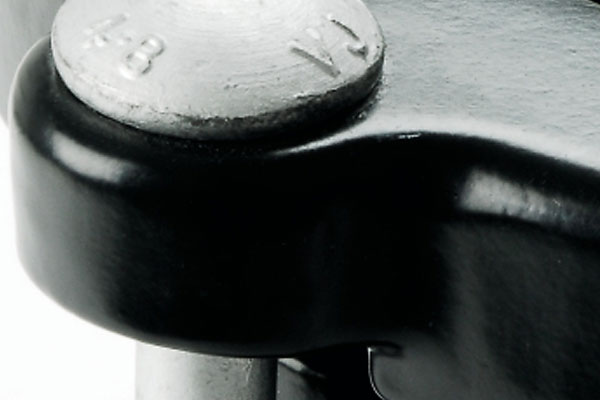

Simple to Fit
One size of captive, non-rotating bolt across whole range requiring a single spanner to install along with one bolt torque across range.

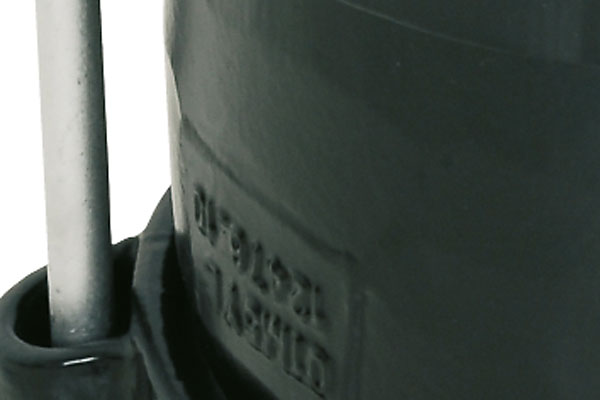

Designed for Durability
All metal components are coated with Rilsan Nylon 11 which provides excellent corrosion resistance, impact protection and long-term durability. Nuts and bolts are Sheraplex coated to prevent galling and allow repeated re-use.
Flexible Flange Drilling
As standard the flange adaptors are multi drilled to accommodate BS EN 1092-2 PN10 & 16. Flange drilling to other standards available to accommodate site requirements
End Load Forces Easily Accommodated
Low profile end ring means no interference with tie rods used to harness the flange adaptor to accommodate end load forces.
3D Model Loading…
Explore
Projects
Rapid Connection, Trusted Performance
Viking Johnson QuickFit couplings are widely specified for projects requiring fast, efficient installation and reliable sealing performance. Supporting water utilities around the world, QuickFit helps reduce installation time while maintaining pipeline security.
Project:

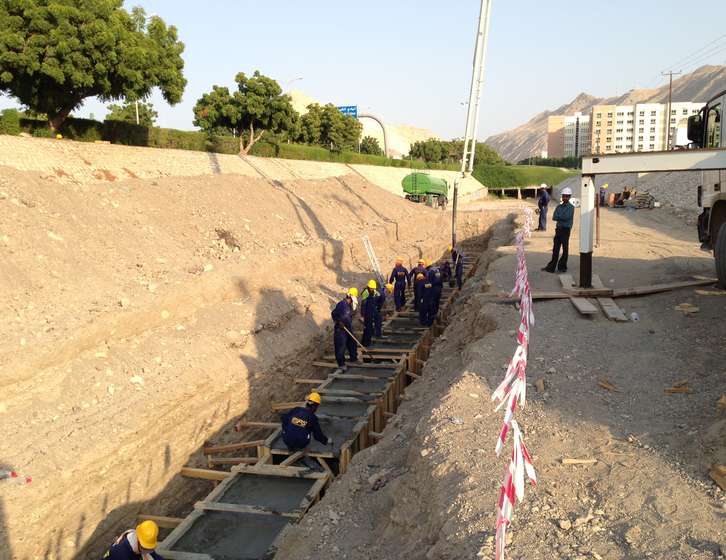

QuickFit – Desalination Plant Pipeline in Oman
Viking Johnson supplied Maxidaptors, QuickFit Flange Adaptors and Dismantling Joints for the main pipeline from Ghubrah Desalination Plant to Muscat Reservoir.
