Pipe Repair products offer a fast, safe way to seal splits, holes, and corroded sections instantly – often under full system pressure – avoiding the need for expensive and time-consuming network shutdowns.

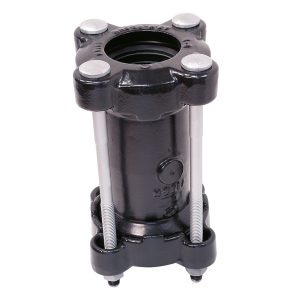

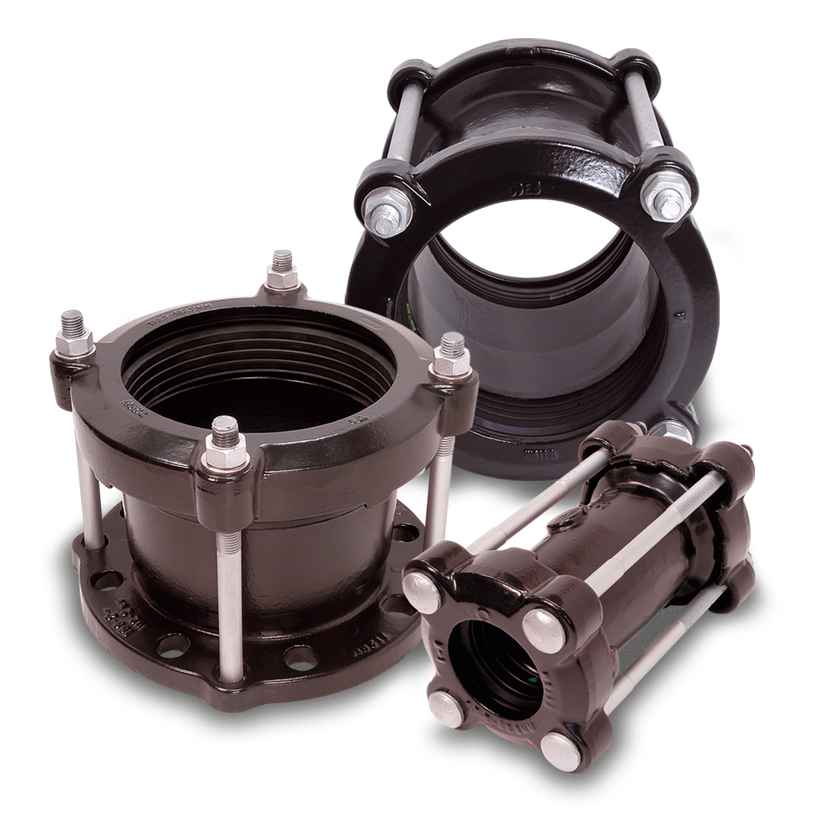

The Viking Johnson MegaFit range is a versatile line of universal couplings and flange adaptors designed to simplify pipe connection and repair. It connects plain-ended pipes of the same nominal bore but varying outside diameters.
A key benefit is its wide tolerance (up to 34 mm OD), allowing one fitting to suit multiple pipe sizes. This helps reduce stockholding and speeds up installation, particularly in repair situations where pipe dimensions may be uncertain.
MegaFit is engineered for fast, straightforward installation, with captive bolts for single-sided tightening and an extended centre sleeve to accommodate pipe variation and damaged ends.
MegaFit also allows angular deflection up to around 8°, enabling flexibility during installation.
Sealing performance is delivered through the patented “slide easy” gasket, which provides a reliable seal even on corroded or uneven pipe surfaces, supported by a protected closed-chamber design.
The unique, ‘slide easy’ gasket provides maximum sealing pressure, even on scored, pitted and corroded pipe surfaces through its distinctive circumferential ribs.

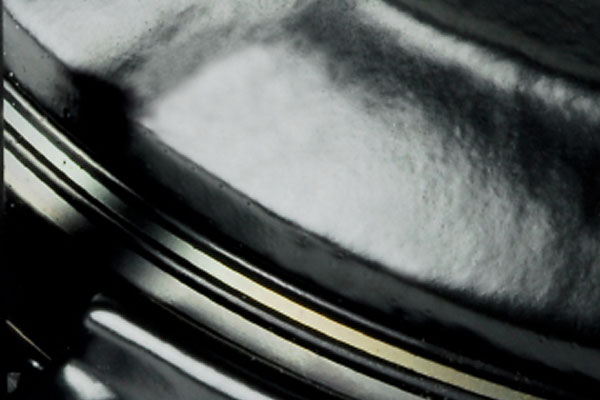

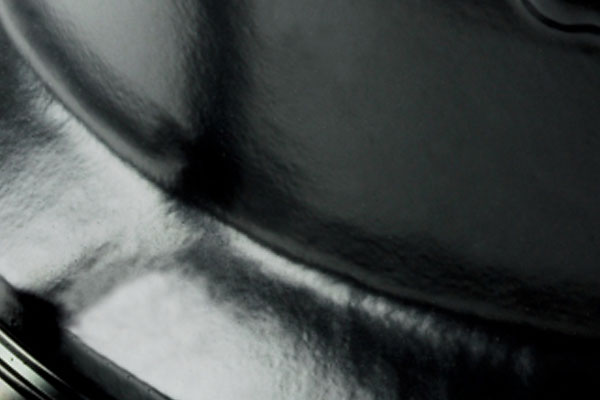

Excellent Corrosion Protection
Metal components are coated with Rilsan Nylon 11 which is WRAS approved for use with potable water. The nuts and bolts are Sheraplex coated to WIS 4-52-03, offering long term protection to corrosion, impact and abrasion for continued reliable performance.

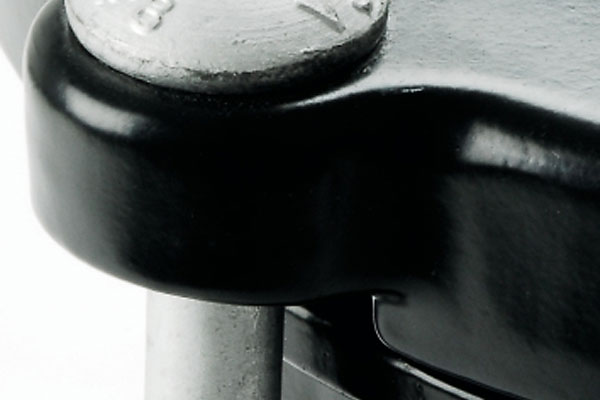

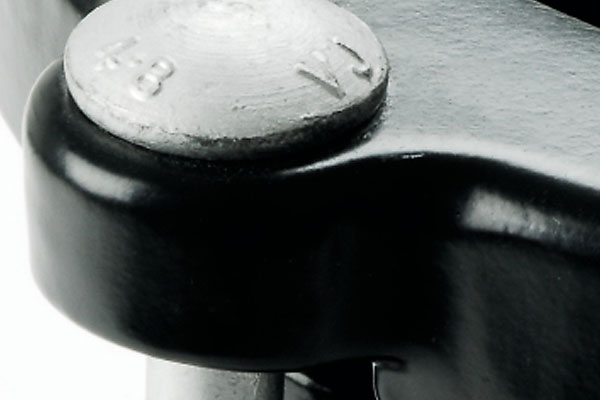

User Friendly
The MegaFit range is supplied with captive bolts, meaning that the nuts need only to be tightened, with a torque wrench, at one end, saving time and simplifying installation.

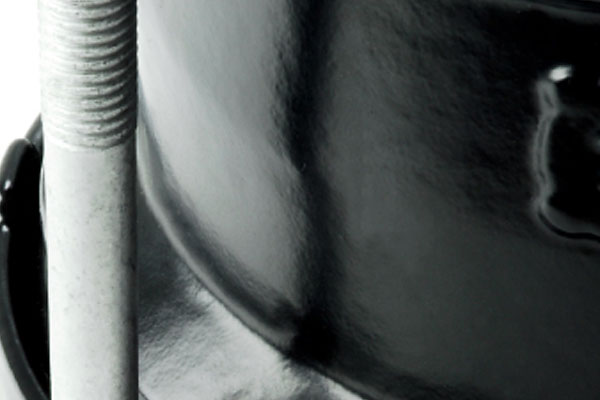

Simple to Fit
MegaFit includes an extended centre sleeve as standard to aid installation it allows for greater cutting tolerances and greater pipe insertion depths – sealing beyond corrosion damaged pipe ends.
3D Model Loading…
Explore

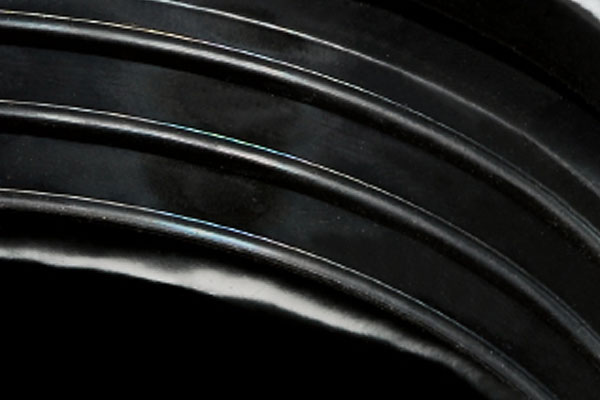

Guaranteed Sealing
The unique, ‘slide easy’ gasket provides maximum sealing pressure, even on scored, pitted and corroded pipe surfaces through its distinctive circumferential ribs.
Excellent Corrosion Protection
Metal components are coated with Rilsan Nylon 11 which is WRAS approved for use with potable water. The nuts and bolts are Sheraplex coated to WIS 4-52-03, offering long term protection to corrosion, impact and abrasion for continued reliable performance.
User Friendly
The MegaFit range is supplied with captive bolts, meaning that the nuts need only to be tightened, with a torque wrench, at one end, saving time and simplifying installation.
Simple to Fit
MegaFit includes an extended centre sleeve as standard to aid installation it allows for greater cutting tolerances and greater pipe insertion depths – sealing beyond corrosion damaged pipe ends.

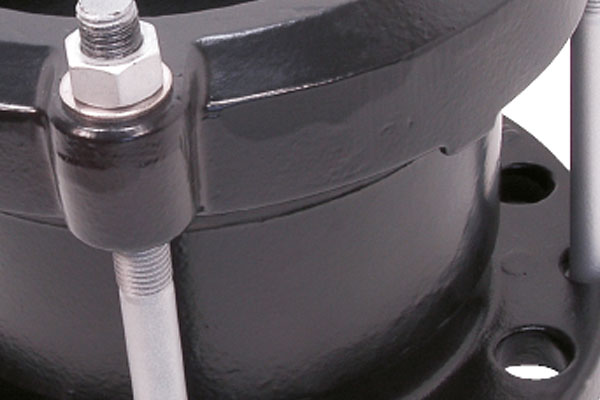

Flange Drillings PN10/PN16

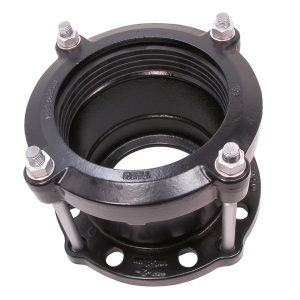

MegaFit flange adaptors are designed to join pipes of various materials and outside diameters to flanges of the same nominal size
3D Model Loading…
Explore

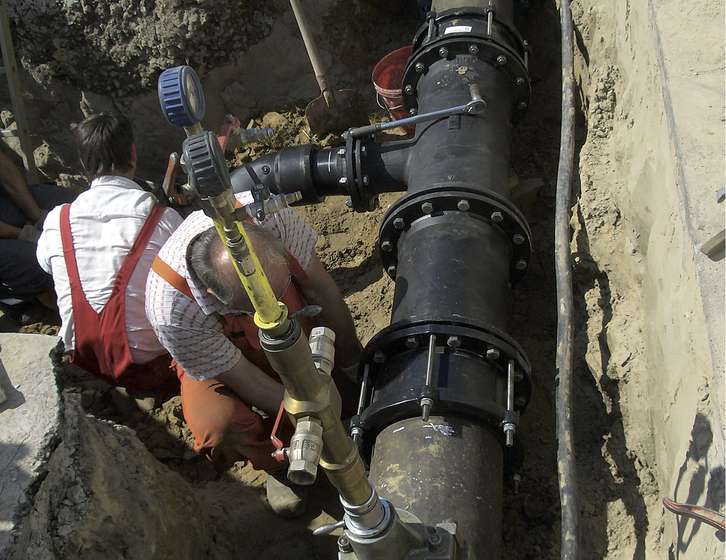

Projects
Wide Tolerance Performance, Trusted Globally
Viking Johnson MegaFit couplings are specified for applications requiring flexibility across varying pipe diameters and materials. With up to 34mm OD tolerance and a proven ‘slide easy’ gasket design, MegaFit delivers secure sealing performance and simplified installation on live networks.
