Pipe Repair products offer a fast, safe way to seal splits, holes, and corroded sections instantly – often under full system pressure – avoiding the need for expensive and time-consuming network shutdowns.
EasiTee – Mattseal enables flanged branch connections under pressure, accommodating wide pipe tolerances and large branch sizes, making it ideal for grey cast iron without costly shutdowns or disruption.
Pressure Ratings
WaterWaste Water
Size Range = DN350 to DN600
Working Pressure DN350 to DN600 = 16 Bar
Compatible Pipe Materials
Pipe Materials Caveats
EasiTee – MattSeal
Caveat 1
Due to the characteristics of PE pipe, Viking Johnson does not recommend the use of repair clamps on this pipe material.
Caveat 2
EasiTee – MattSeal is not designed to accommodate / resist the loads from the under pressure drilling equipment, which needs to be supported externally during the operation to drill into the main. In addition, the valve and branch pipework needs to be adequately supported to ensure none of the dead / live loads are imposed in the branch outlet in the EasiTee – MattSeal.
Have a technical question about this product or its application?
Our technical team is ready to answer your questions and guide you to the right solution.
Get Expert Help
EasiTee – MattSeal
Have a technical question about this product or its application?
Our technical team is ready to answer your questions and guide you to the right solution.
Complete and submit the form shown, and one of our technical specialists will respond to your enquiry within two working days.
"*" indicates required fields
Branch Outlet Repair Solution
Fabricated Steel Branch Connection

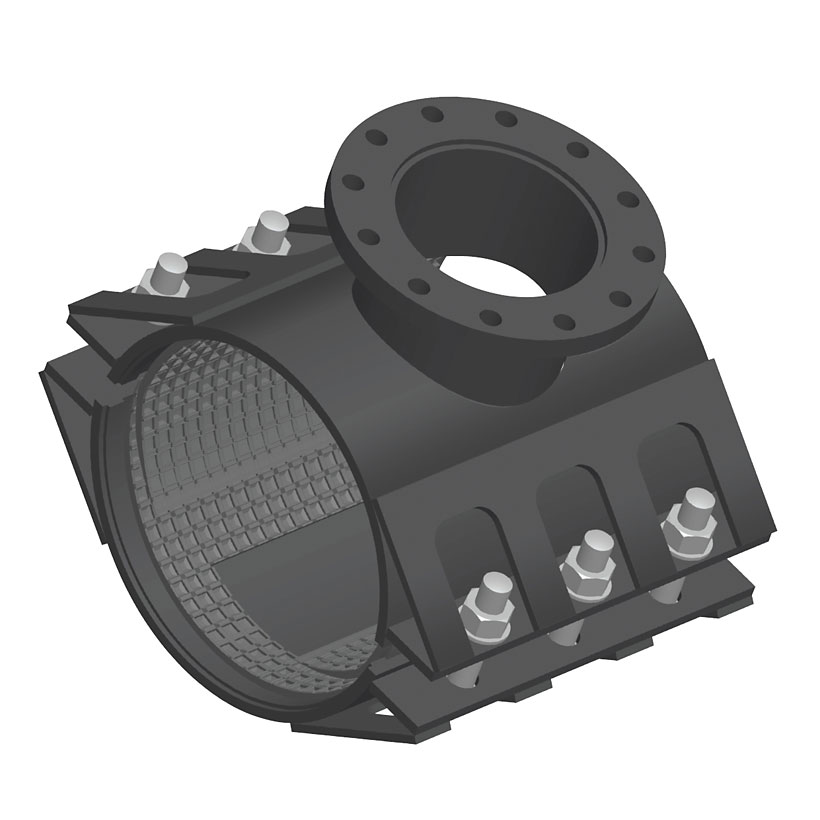

EasiTee – MattSeal is designed for DN350 to DN600 pipelines. It enables installers to create a branch outlet that matches the diameter of the host pipe, ensuring efficient integration into existing networks. The unit is engineered for durability and compatibility with large-diameter systems
Perfect Sealing Performance
EasiTee – MattSeal incorporates a full waffle gasket providing 12 mm tolerance to accommodate pipe irregularities and maintain a secure seal. This design enhances installation reliability by compensating for surface variations and ensuring consistent compression across the joint.
Performance on Cast Iron Mains
Optimised for cast iron pipelines, the waffle gasket reduces the risk of leakage caused by stress fractures that can occur when installing branch outlets. Its cushioning and sealing properties help protect ageing cast iron mains while maintaining structural integrity and long-term performance.
Engineered for Ease of Installation While Under Pressure
EasiTee – MattSeal facilitates live mains tapping through the gate valve under pressure, in any weather which avoids any costly shutdowns. Installation requires no specialist tools just a torque wrench to verify correct bolt loading.
Why Choose EasiTee – MattSeal
Branch outlets – Available up to the same size as main.
Zero customer disruption – Installed under pressure, no need to turn off supply.
No dirty-water issues – Keeps quality complaints off the table.
Leak-tight permanent seal – Handles both circumferential and longitudinal cracks.
50-year design life – Undergone intensive performance testing to ensure the strength and integrity.
Rilsan coating – Provides exceptional protection against corrosion, impact, abrasion, and chemicals.
Design Benefits

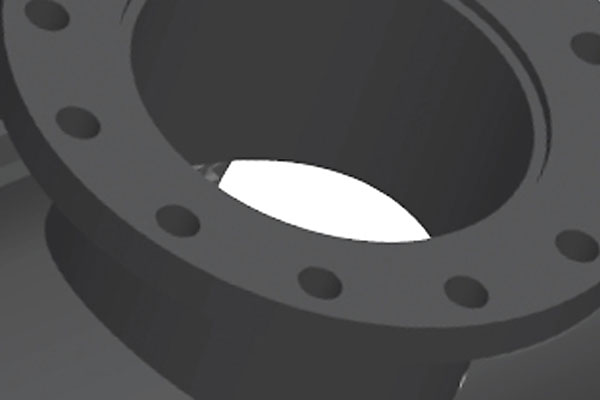

Flexible
Ability to fabricate any flange drilling or outlet (subject to pressure rating of the product).

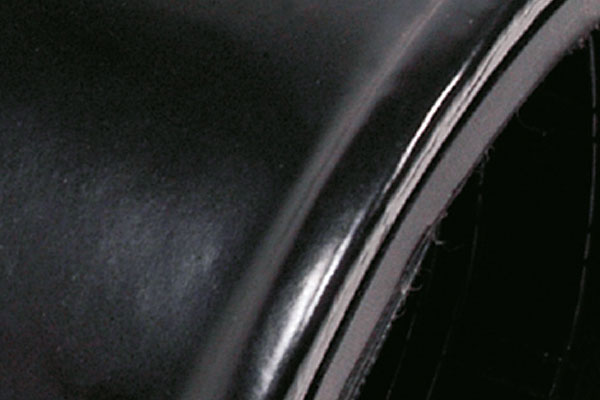

Corrosion Protection
The sleeve or body are fully coated in Black Rilsan Nylon 11 which has excellent resistance to impact, abrasion, weathering and chemicals as well as good thermal stability and flexibility to accommodate for rough site handling and is WRAS listed.

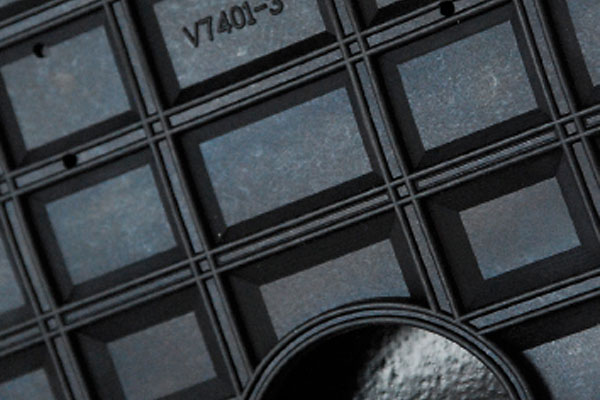

Reliable Permanent Seal
The waffle gasket is designed to fully surround the pipe within the housing offering optimal sealing. Leak tight seal even on circumferential or longitudinal cracks.
Water
Waste Water
