Pipe Repair products offer a fast, safe way to seal splits, holes, and corroded sections instantly – often under full system pressure – avoiding the need for expensive and time-consuming network shutdowns.
EasiTap enables under-pressure tapping connections without shutdown, maintaining pipe strength while delivering a reliable waffle gasket seal and slimline design for easy installation in congested trench conditions.
Pressure Ratings
WaterWaste Water
Size Range = DN50 to DN700
Working Pressure DN50 to DN600 = 16 Bar
DN700 = 10 bar
Compatible Pipe Materials
Pipe Materials Caveats
EasiTap
Caveat 1
Due to the characteristics of PE pipe, Viking Johnson does not recommend the use of repair clamps on this pipe material.
Caveat 2
When installing a repair clamp on pipes DN350 & over installation is easier if the fitting has a small outlet to release the pressure while tightening the bolts. Hence, for sizes DN350 and over Viking Johnson only offers these as EasiTap.
Caveat 3
EasiTap are not suitable for use on heating systems with fluctuating temperatures.
Have a technical question about this product or its application?
Our technical team is ready to answer your questions and guide you to the right solution.
Get Expert Help
EasiTap
Have a technical question about this product or its application?
Our technical team is ready to answer your questions and guide you to the right solution.
Complete and submit the form shown, and one of our technical specialists will respond to your enquiry within two working days.
"*" indicates required fields
Simple Tapping Repair Solution
Avoids costly shutdowns

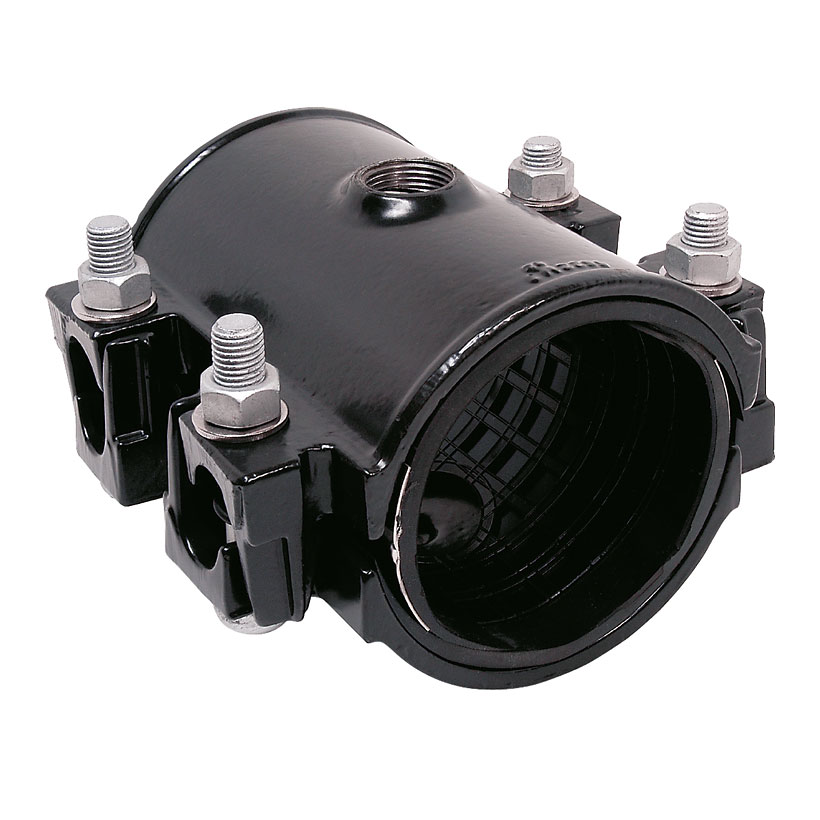

EasiTap has a threaded tapping outlet (off-take port) engineered to create a new branch connection or attach service lines without interrupting pipeline operation. It enables controlled fluid extraction or system expansion while maintaining pipeline integrity, eliminating the need for shutdowns or cutting into the existing line.
Engineered for under pressure repairs

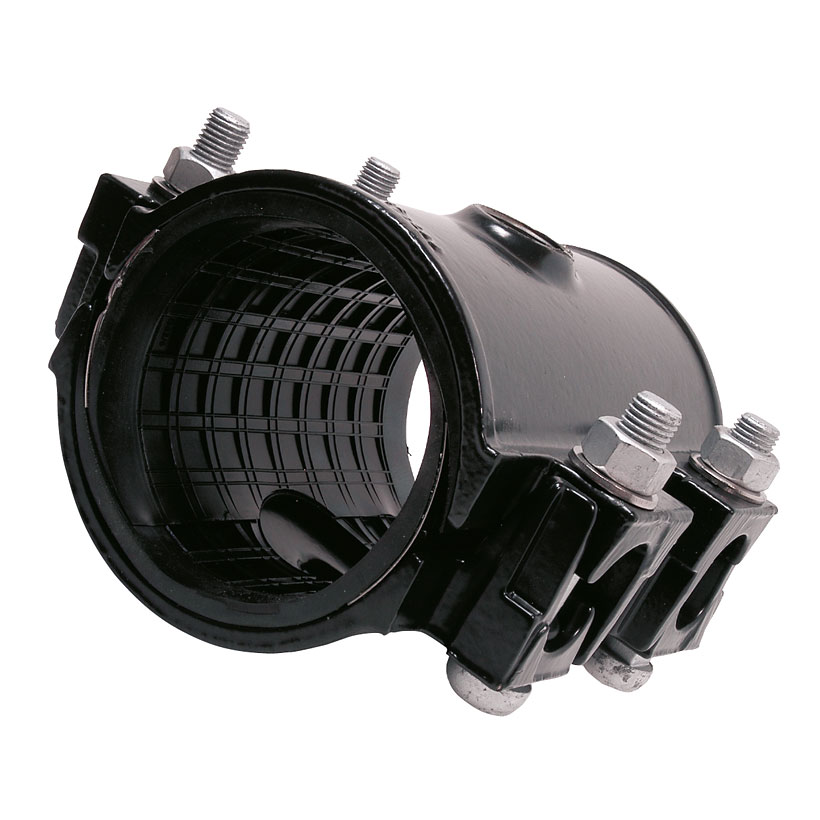

EasiTap DN50 to DN300 are supplied in a two-half configuration with self-retaining bolts, which minimises bolt loss during installation. Using selective tightening of the bolts, operatives can realign pipes with circumferential breaks that have separated in service.
Permanent Sealing Performance
EasiTap delivers a permanent, leak-tight seal even on heavily corroded pipe surfaces. Their 100% circumferential EPDM ‘Waffle’ gasket accommodates both longitudinal and circumferential cracks. The WRAS-approved EPDM gasket supports 16 bar working pressure and 24 bar site test pressure.
Wide Tolerance Range
EasiTap covers multiple pipe materials of the same nominal bore. This reduces stockholding requirements and simplifies inventory management.
High-strength Construction
Using ductile/malleable iron or steel half housings, optimised through modern design techniques to reduce raw material use, EasiTap provides full-length support, restoring cracked pipes to its original strength.
Ease of Installation
All products can be installed under pressure and in any weather. EasiTap includes self-retaining bolts and the Installation requires no specialist tools just a torque wrench to verify correct bolt loading.
Corrosion Protection
All cast components are coated in Black Rilsan Nylon 11, providing excellent resistance to impact, abrasion, weathering and chemicals, while remaining flexible enough to withstand rough site handling. An optional stainless-steel bolt upgrade offers enhanced corrosion resistance and extended service life.
Why Choose EasiTap
Zero customer disruption – Installed under pressure, no need to turn off supply.
No dirty-water issues – Keeps quality complaints off the table.
Works in tight pipe clusters – 4 bolt design, ideal when space is limited.
Leak-tight permanent seal – Handles both circumferential and longitudinal cracks.
50-year design life – Undergone intensive performance testing to ensure the strength and integrity.
Rilsan coating – Provides exceptional protection against corrosion, impact, abrasion, and chemicals.

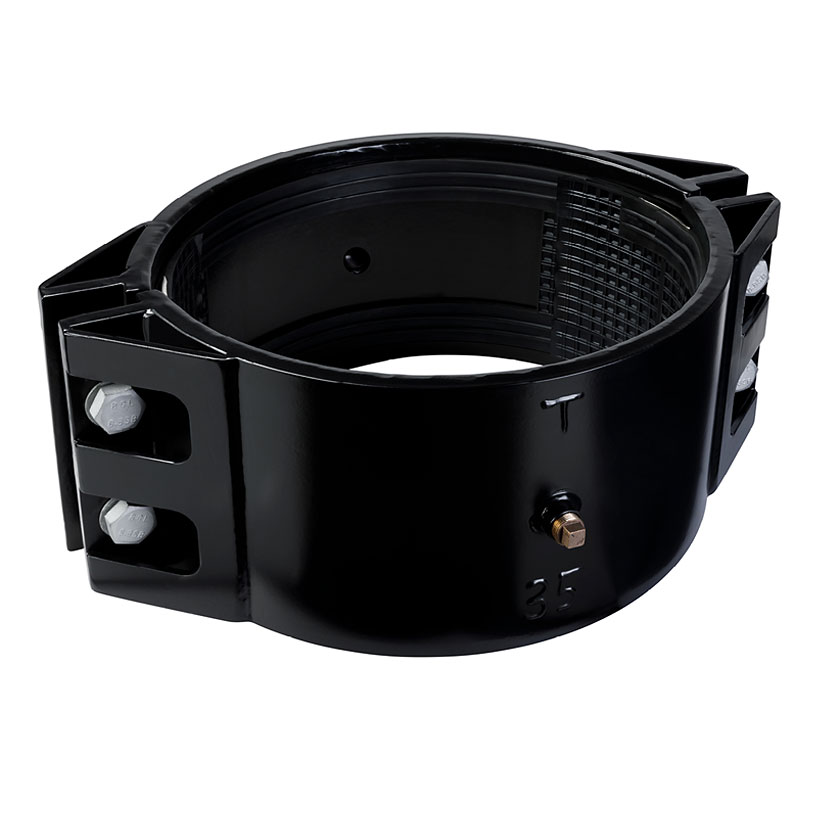

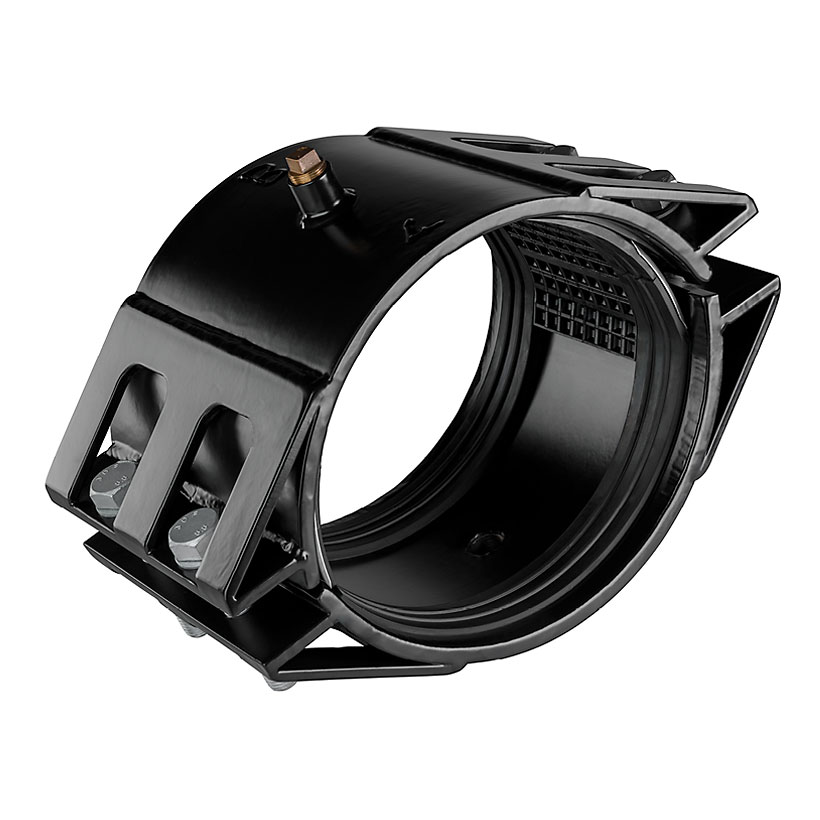

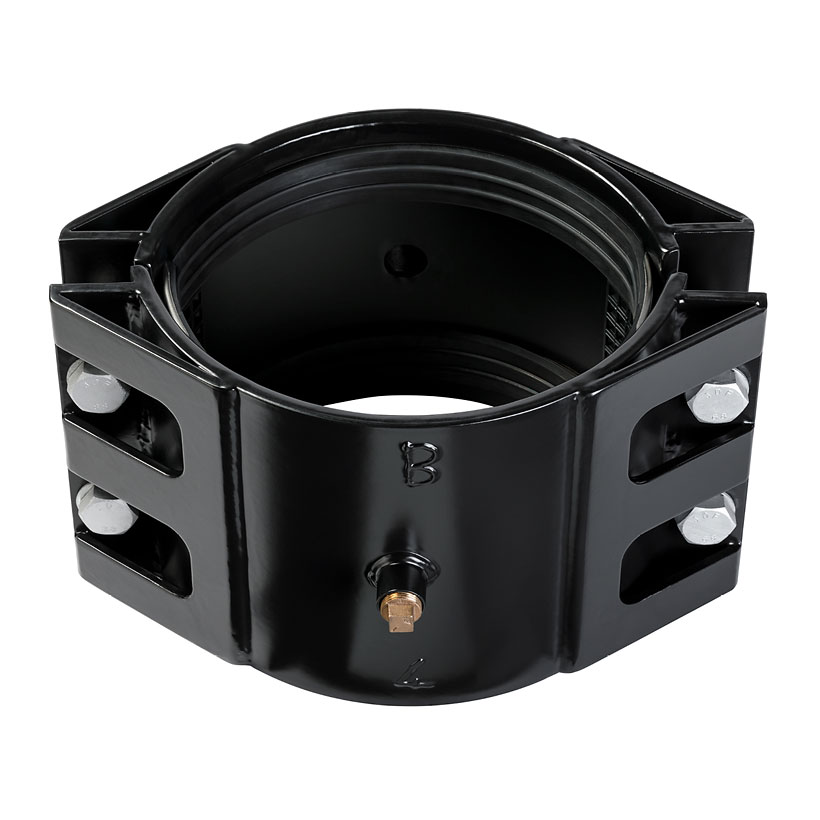

For repairs on pipes DN350 & over – A small EasiTap outlet is supplied to release pressure while tightening the bolts.
Design Benefits

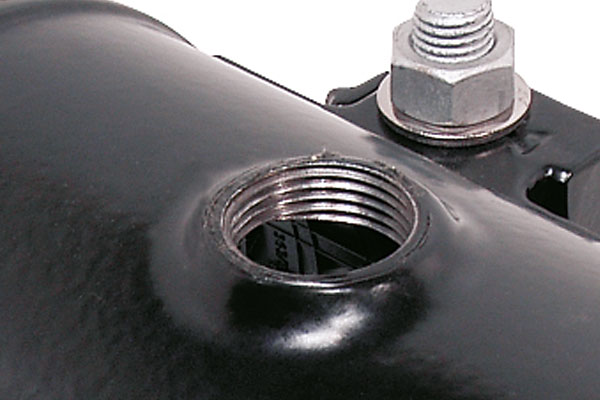

Under Pressure Tapping
½” to 2” D&T outlet options.

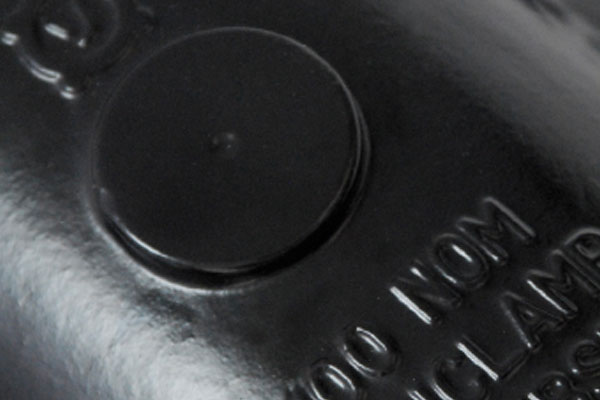

Corrosion Protection
All cast components are fully coated in Black Rilsan Nylon 11 which has excellent resistance to impact, abrasion, weathering and chemicals as well as good thermal stability and flexibility to accommodate for rough site handling.
High Strength
The strength of the ductile iron housings will provide permanent support and seal around the pipe.

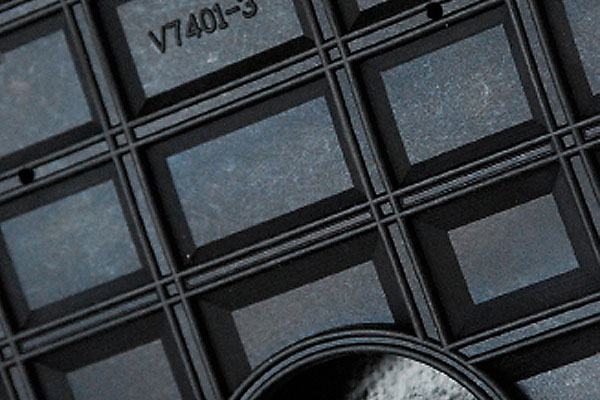

Permanent Seal
The 100% ‘Waffle’ gasket provides a reliable and permanent leak tight seal even on circumferential or longitudinal cracks.

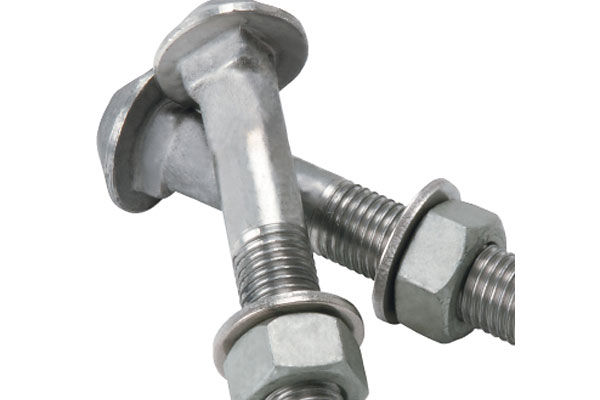

Enhanced Lifespan
Product comes as standard with grade 4.8 steel bolts that are Sheraplex coated bolts to WIS 4-52-03 Option for grade A2 stainless steel bolts coated with dry film lubricant.
Both provides excellent corrosion resistance against degradation and maximizes long life
