Pipe Repair products offer a fast, safe way to seal splits, holes, and corroded sections instantly – often under full system pressure – avoiding the need for expensive and time-consuming network shutdowns.
AquaShield couplings provide restrained PE & barrier pipe connections, ideal for brownfield sites, universally compatible with major barrier pipe brands, protects against ground contaminants, and delivers full Type 1 end‑load performance.
Pressure Ratings
WaterWaste Water
DN90 to DN180 = 16 Bar
Compatible Pipe Materials
Pipe Materials Caveats
AquaShield Coupling
Caveat 1
Fittings are SDR dependent, available for SDR11 & SDR17.
Have a technical question about this product or its application?
Our technical team is ready to answer your questions and guide you to the right solution.
Get Expert Help
AquaShield Coupling
Have a technical question about this product or its application?
Our technical team is ready to answer your questions and guide you to the right solution.
Complete and submit the form shown, and one of our technical specialists will respond to your enquiry within two working days.
"*" indicates required fields

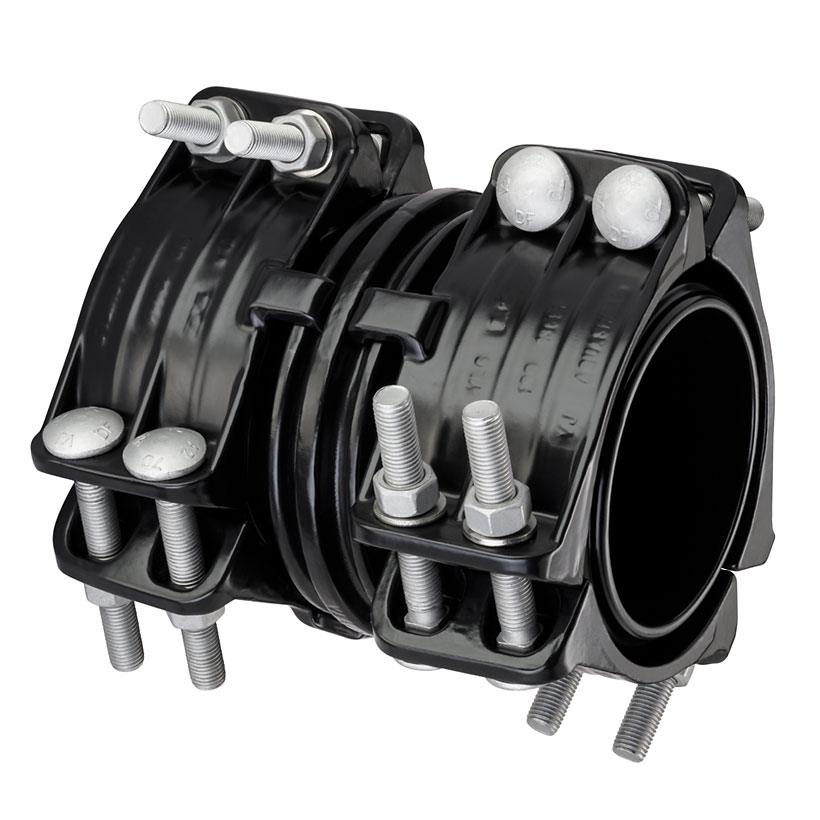

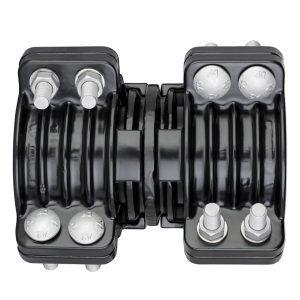

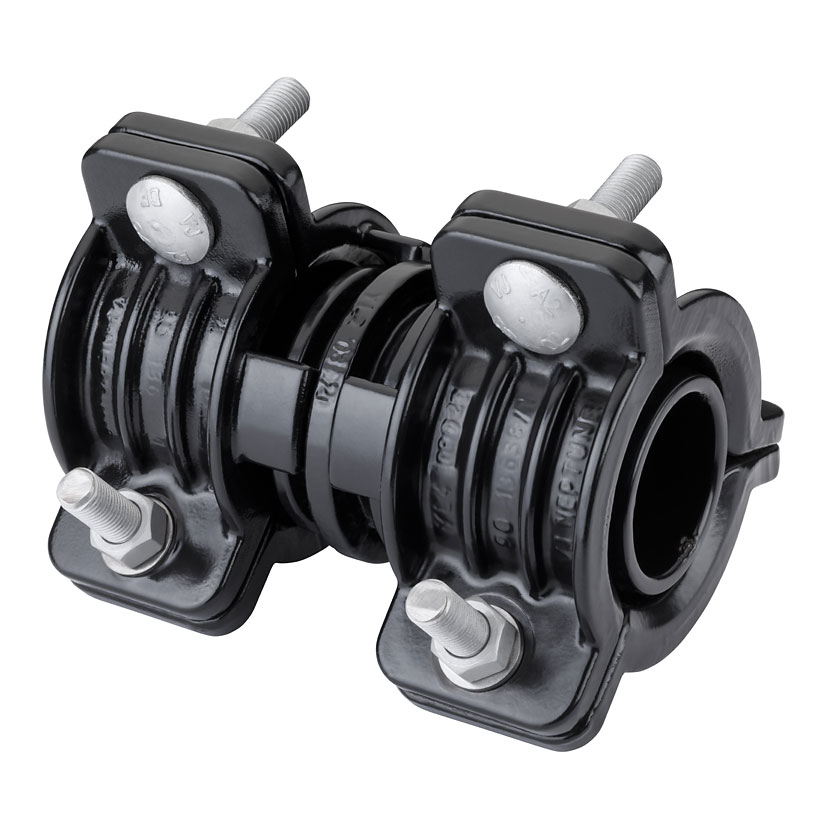

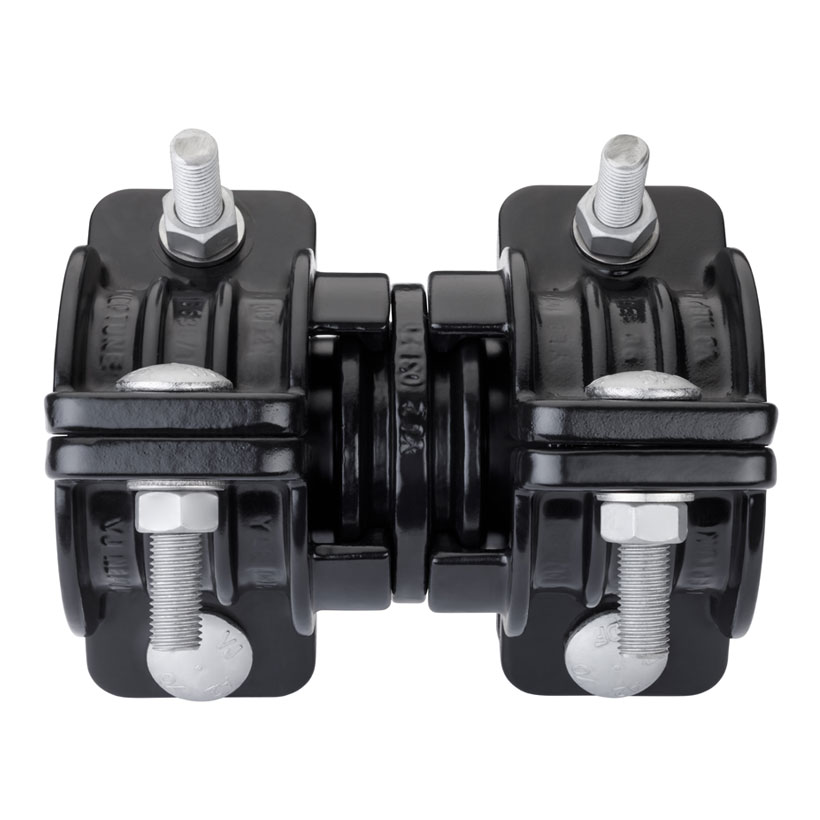

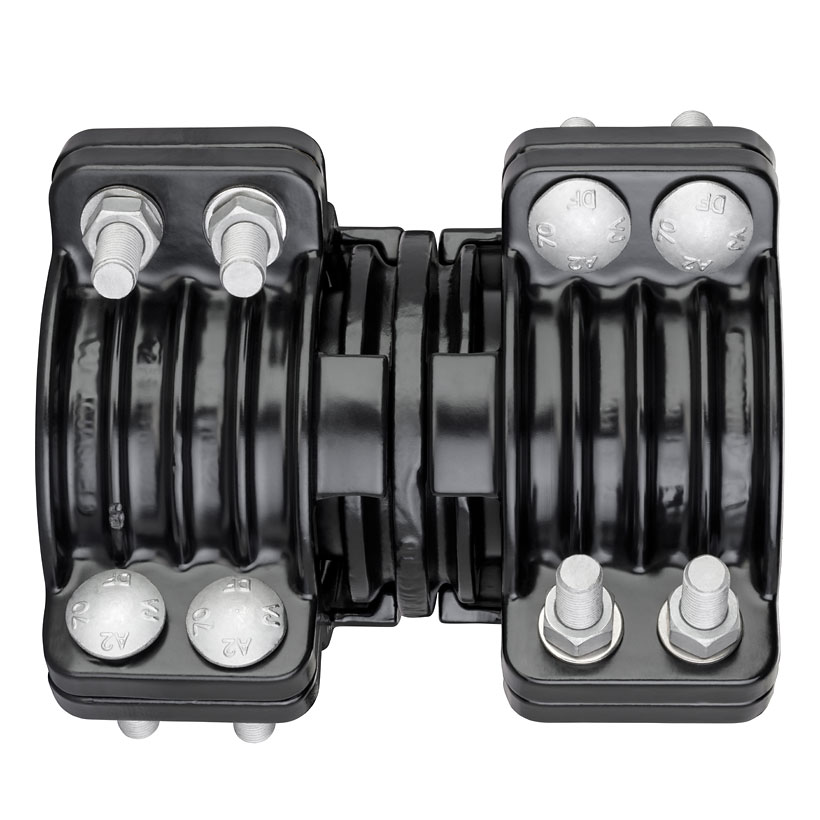

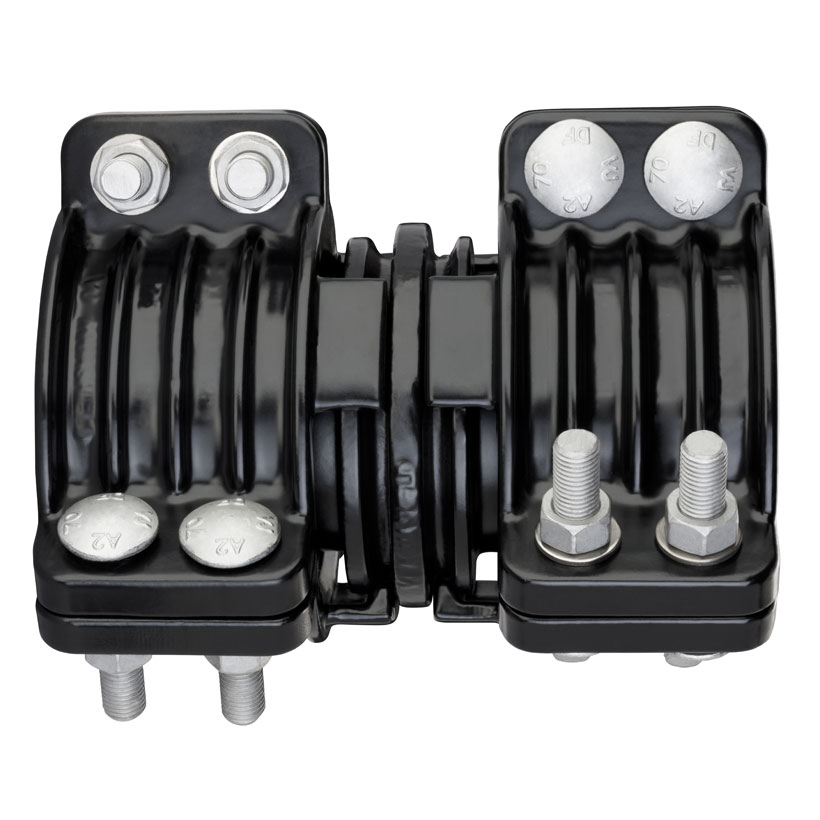

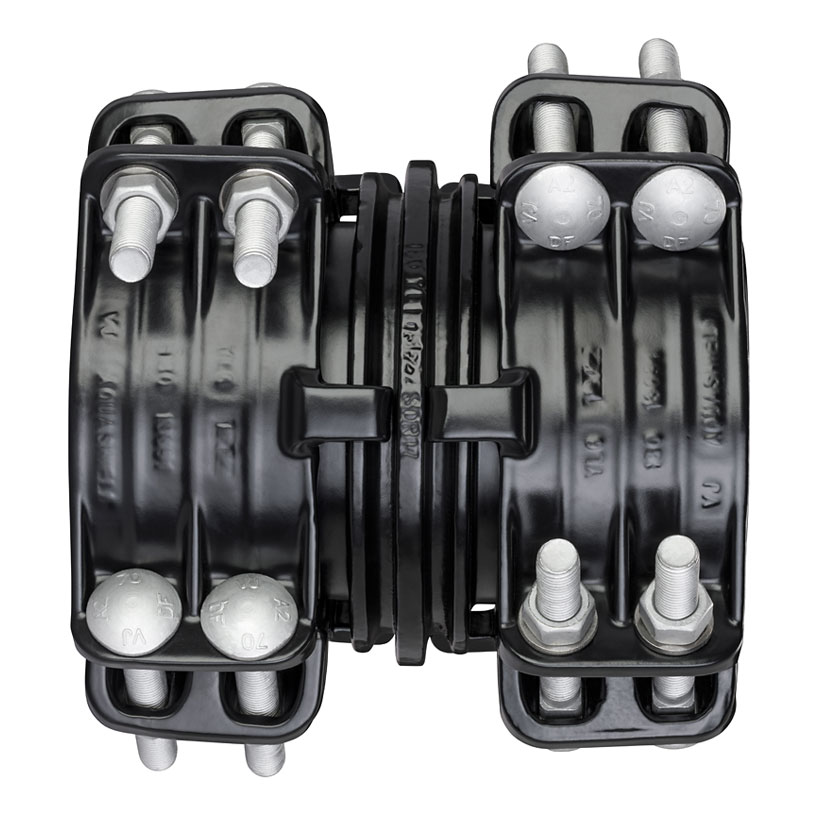

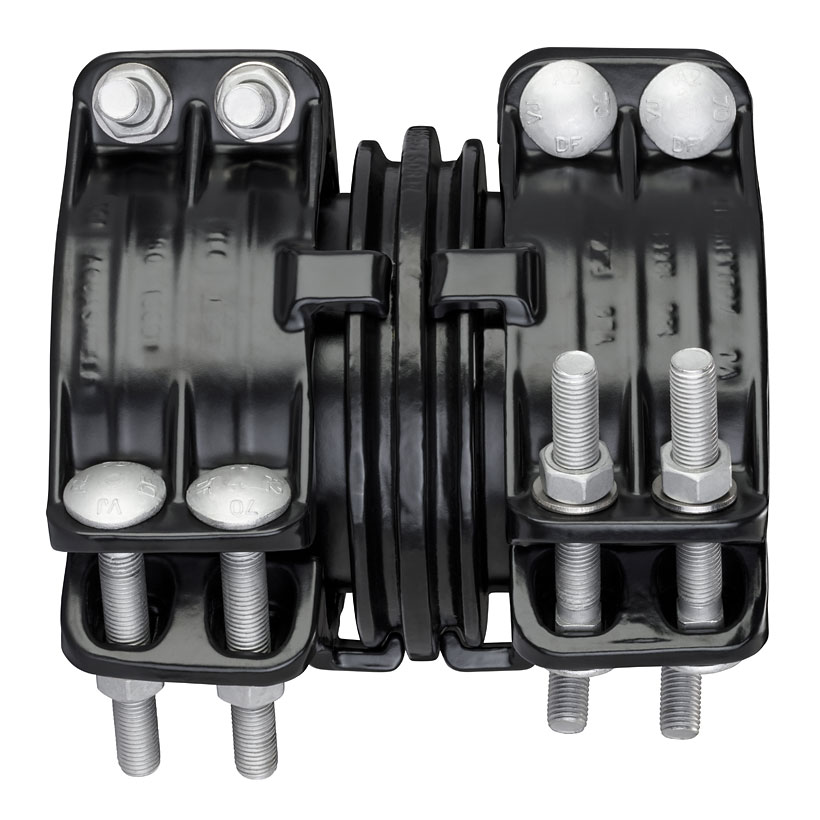

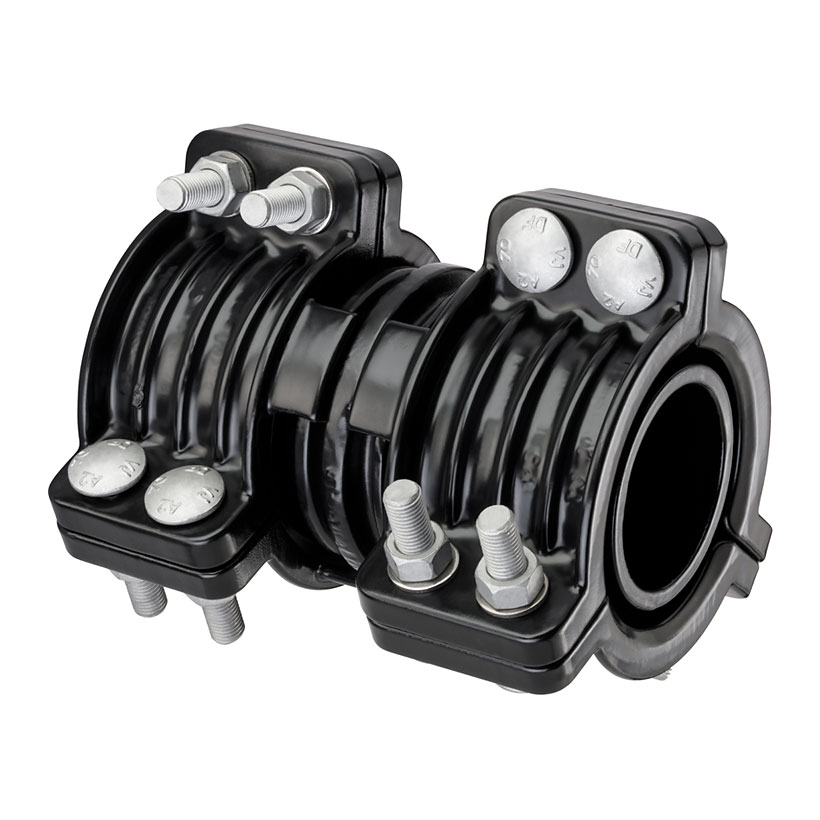

AquaShield Couplings DN90/DN125/DN180
Universal Fittings for PE & Barrier Pipes
AquaShield is a universal fitting that accommodates PE & PE barrier pipe for use on new installations in brownfield sites. Fully approved system to enable connections between different barrier pipe brands.
These couplings prevent contaminants entering water networks by sealing the barrier pipe from within while keeping the outer layer of the barrier pipe intact. It can also be used as a transition to a standard PE water network.
Unique Gripping Technology
AquaShield is rated to 16 bar working pressure and has a unique gripping mechanism offering WIS 4-24-01 type-1 end load restraint which means the pipe will fail before the fitting. It is independently tested and approved to BS 8561:2021 and certified by WRc and RINA for permeation against contaminants as per BS 8588:2017 (section 7.7).

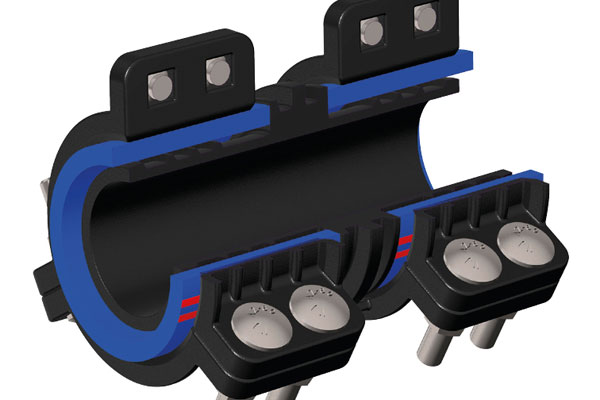

AquaShield forms a leak-tight seal without the need for a gasket simply by torquing up the bolts. The spigot profile design ensures a firm and secure connection is made from inside the pipe.
Why Choose AquaShield
A universal fitting – Compatible with all major barrier pipe manufacturers.
Preassembled design – Features captive, reversible stainless-steel bolts for rapid pipe installation.
Single tool installation – Requires only a spanner or wrench to slide on and tighten.
Zero surface preparation – Eliminates the need for pipe cleaning or post-installation wrapping.
50-year longevity – Engineered with a design life expectancy of half a century.
Certified protection – WRc and RINA certified for contaminant permeation resistance.
Independently tested – Fully compliant with BS 8561:2021 and BS 8588:2017 standards.
Design Benefits

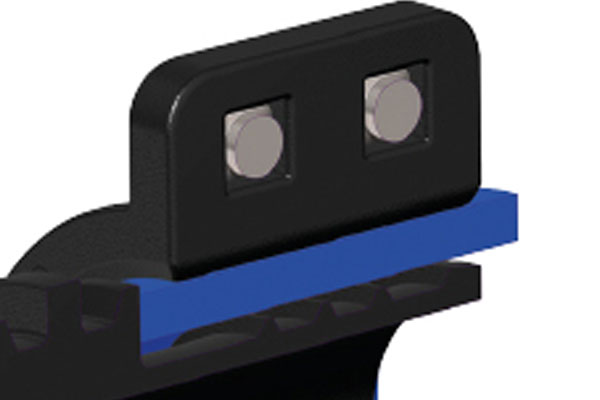

Universal Fitting
Universal fitting that interconnects all major barrier pipe brands including Protecta-Line, Puriton, SLA and PE 100.
Simple to Install
Simple to install preassembled with captive and reversible stainless-steel bolts, which makes it quick and easy to slide onto the pipe and tighten up with only a single spanner or a wrench. There is no requirement for pipe surface preparation and no need to wrap after installation.

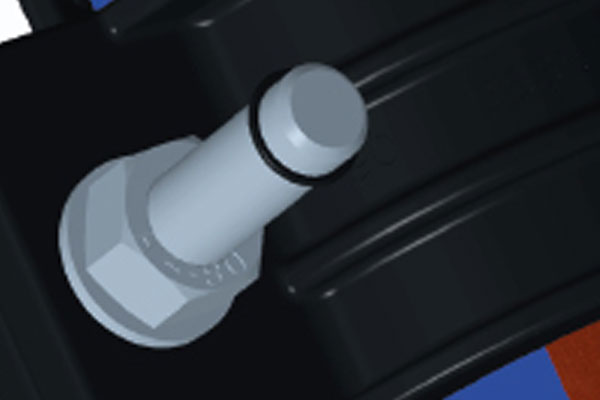

Corrosion Protection
Stainless steel nuts and bolts coated with dry film lubricant, which provides long-term corrosion protection.

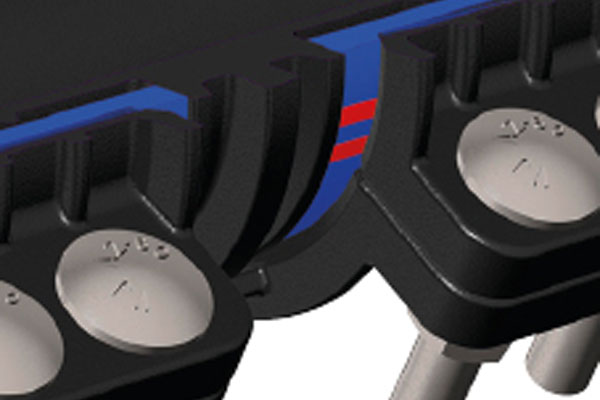

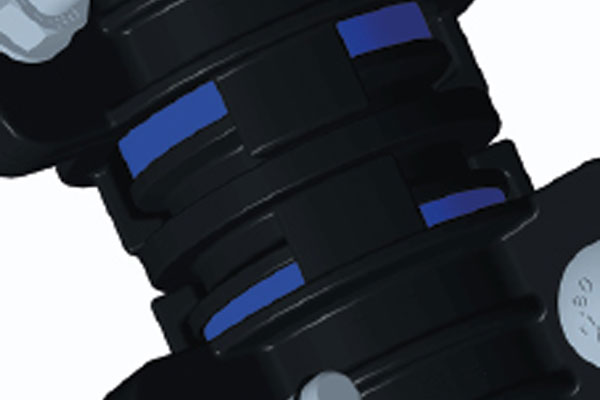

Visual Indicator
Visual indicator for correct installation.

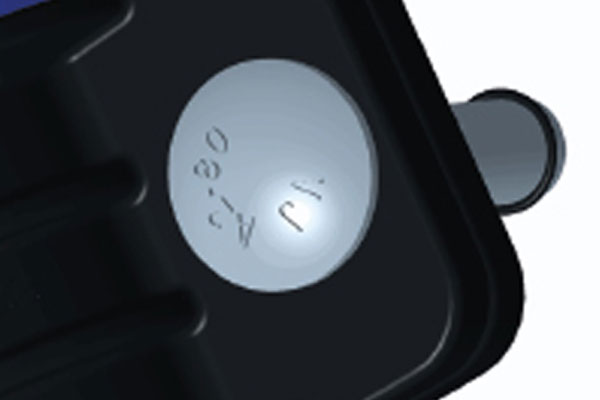

No secondary re-torque necessary.
No secondary re-torque necessary.

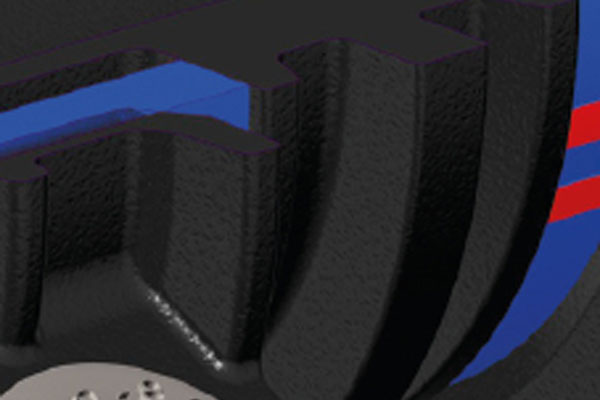

Protective Coating
A Rilsan bio coating is applied made from castor oil which is highly protective and environmentally sustainable.
